GAS TURBINE
GENERATOR SETS
Quiet, lightweight powerhouses that can
run on natural gas or diesel
VERSATILE SOLUTIONS DELIVERING
POWER AND STABILITY
HIGH START UP RELIABILITY
Continuous combustion systems with single can type combustors provide very high start-up reliability.
CLEAN EXHAUST GAS
Low exhaust gas emissions, with efficient and complete combustion, deliver eco-friendly power generation.
EASE OF MAINTENANCE
Gas turbines have a proven track record of high uptime and simplified maintenance, requriing only quarterly start ups (no load required) as standard readiness checks.
EXCELLENT FREQUENCY, STABILITY, AND INSTANT OVERLOAD TOLERANCE
The rotating design of this turbine package provides power generation with very stable frequency. The high rotating shaft speed of between 18,000 to 53,000 RPM provides the instant overload tolerance required for standby generator sets.
EASE OF INSTALLATION
The lightweight, compact design of the GTS makes it ideal for small or confined spaces- such as roof tops or basements.
BENEFITS OF DUAL FUEL SYSTEMS
- Extended operation without large fuel storage tank.
- Higher versatile operation than single fuel system.
- Clean exhaust gas with gas fuel
GAS TURBINES FOR INDUSTRIAL, INSTITUTIONAL, AND COMMERCIAL APPLICATIONS
Renewable Electric Power, Ceramics, Government, Casinos and Resorts, Agriculture, Data Centers, Chemicals, Buildings, Convention Centers, Greenhouses/Nurseries, District Heating, Plastics, Healthcare, Commercial Real Estate, Landfills, Electric Utilities, Food Processing, Universities, Water Treatment, Pharmaceuticals, Printing, Pulp and Paper, Tires and Rubber, Textiles
GTS-2400 Generator System
Electric output: 2,400kW
Voltages: 480V or 13.8kV
Starting time: <40 seconds
Load application capacity: 0.8PF
Frequency deviation: Within ± 4.5% with 100% block load on/off (transient)
Within ± 0.3% (steady state)
Fuel type: Natural gas, diesel
Fuel consumption (diesel): 329gal/hr
Enclosure ambient conditions: 40°C (104°F) at 150m (500ft) elevation

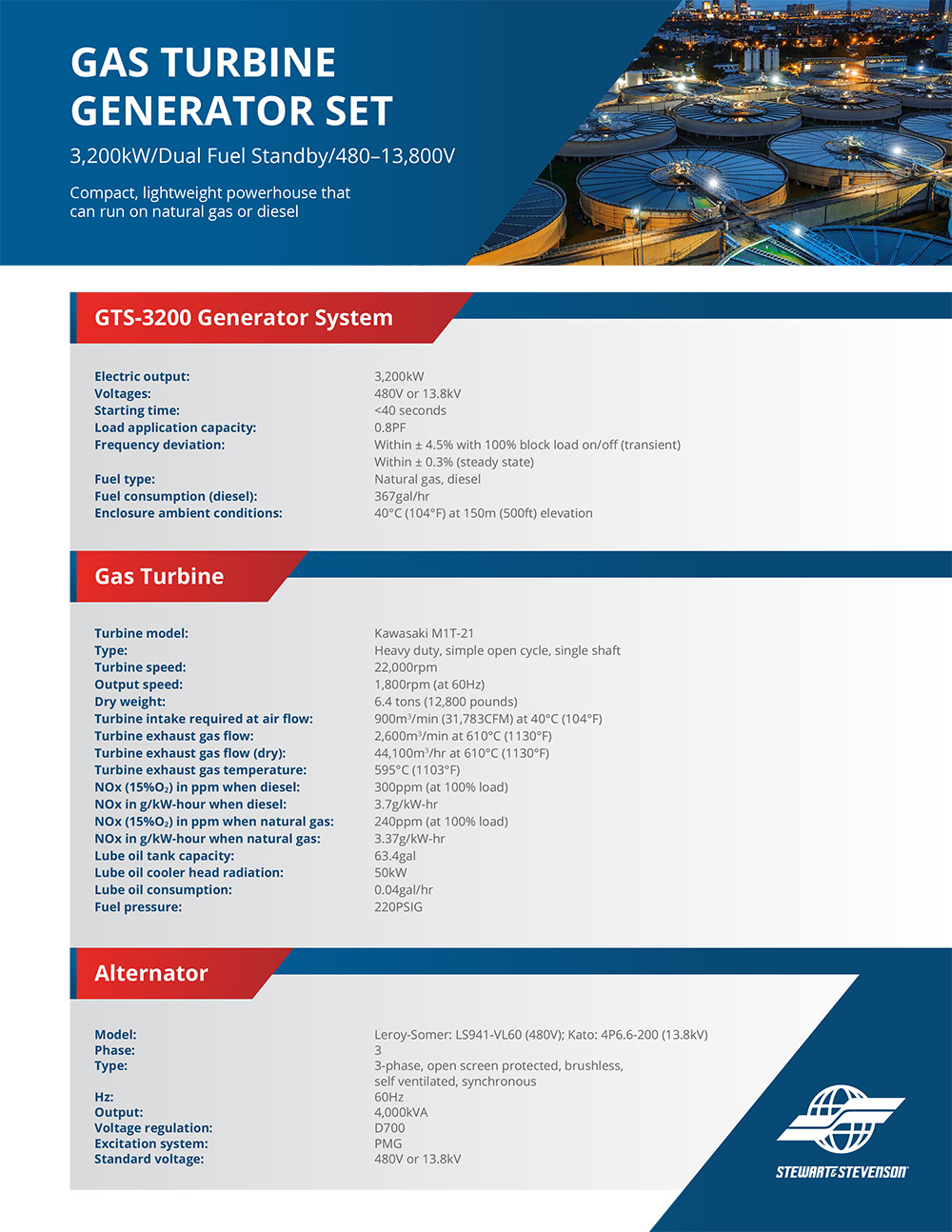

GTS-3200 Generator System
Electric output: 3,200kW
Voltages: 480V or 13.8kV
Starting time: <40 seconds
Load application capacity: 0.8PF
Frequency deviation: Within ± 4.5% with 100% block load on/off (transient)
Within ± 0.3% (steady state)
Fuel type: Natural gas, diesel
Fuel consumption (diesel): 367gal/hr
Enclosure ambient conditions: 40°C (104°F) at 150m (500ft) elevation
GENERATOR SYSTEM
COMPARISON
| KEY SPECIFICATIONS | GTS-2400 | GTS-3200 |
|---|---|---|
| Application | Standby | Standby |
| Rating (kW) | 2,400 | 3,200 |
| Rating (kVA) | 3,000 | 4,000 |
| Voltage | 480V – 13,800V | 480V – 13,800V |
| Hz | 60Hz | 60Hz |
| Alternator RPM | 1,800 | 1,800 |
| Turbine RPM | 22,000 | 22,000 |
| Dimensions – L | 52.7′ | 52.7′ |
| Dimensions – W | 10.1′ | 10.1′ |
| Dimensions – H | 22.3′ | 22.3′ |
| dBA | 85dBA @ 7m | 85dBA @ 7m |
| Weight | 110,000 | 110,000 |
| Turbine | Kawasaki | Kawasaki |
| Turbine Model | M1T – 03 | M1T – 21 |
| Fuel Type | True Dual Fuel | True Dual Fuel |
| Start Time | < 40s | <40s |
| Block Load Capacity | 100% | 100% |
